plenoptic.models.LuminanceContrastGainControl

Note

This object is a torch.nn.Module. It therefore has all the methods and attributes from that class, even though they are not documented here (to avoid cluttering this page).

class plenoptic.models.LuminanceContrastGainControl(kernel_size, on_center=True, amplitude_ratio=1.25, pad_mode='reflect', pretrained=False, activation=<built-in function softplus>, cache_filt=False)

Bases: Module

Center-surround followed by luminance and contrast gain control, then activation.

Model is described in Berardino et al., 2017 [10] and online [11], where it is called LGG.

Parameters:

• kernel_size (int | tuple[int, int]) – Shape of convolutional kernel.

• on_center (bool (default: True)) – Dictates whether center is on or off; surround will be the opposite of center (i.e. on-off or off-on).

• amplitude_ratio (float (default: 1.25)) – Ratio of center/surround amplitude. Applied before filter normalization.

• pad_mode (str (default: 'reflect')) – Padding for convolution.

• pretrained (bool (default: False)) – Whether or not to load model params from Berardino, 2018 [12]. See Notes for details.

• activation (Callable[[Tensor], Tensor] (default: <built-in function softplus>)) – Activation function following linear convolution.

• cache_filt (bool (default: False)) – Whether or not to cache the filter. Avoids regenerating filt with each forward pass.

center_surround

Difference of Gaussians linear filter.

Type:

CenterSurround

luminance

Gaussian convolutional kernel used to normalize signal by local luminance.

Type:

Gaussian

contrast

Gaussian convolutional kernel used to normalize signal by local contrast.

Type:

Gaussian

luminance_scalar

Scale factor for luminance normalization.

Type:

torch.nn.parameter.Parameter

contrast_scalar

Scale factor for contrast normalization.

Type:

torch.nn.parameter.Parameter

Notes

These 6 parameters (standard deviations and constants) were taken from Table 2, page 149 from Berardino, 2018 [12] and are the values used Berardino et al., 2017 [10]. Please use these pretrained weights at your own discretion.

References

[10] (1,2)

A Berardino, J Ballé, V Laparra, EP Simoncelli, Eigen-distortions of hierarchical representations, NeurIPS 2017; https://arxiv.org/abs/1710.02266

[11]

https://www.cns.nyu.edu/~lcv/eigendistortions/ModelsIQA.html

[12] (1,2)

A Berardino, Hierarchically normalized models of visual distortion sensitivity: Physiology, perception, and application; Ph.D. Thesis, 2018; https://www.cns.nyu.edu/pub/lcv/berardino-phd.pdf

Examples

>>> import plenoptic as po
>>> lgg_model = po.models.LuminanceContrastGainControl(
...     31, pretrained=True, cache_filt=True
... )

Methods

display_filters([vrange, zoom, title, col_wrap])	Display convolutional filters of model.
forward(x)	Compute model response on input tensor.

display_filters(vrange='indep0', zoom=5.0, title=['linear filt', 'luminance filt', 'contrast filt'], col_wrap=3, **kwargs)

Display convolutional filters of model.

Parameters:

• vrange (tuple[float, float] | str (default: 'indep0')) – Arguments for imshow, see its docstrings for details.

• zoom (float | None (default: 5.0)) – Arguments for imshow, see its docstrings for details.

• title (str | list[str] | None (default: ['linear filt', 'luminance filt', 'contrast filt'])) – Arguments for imshow, see its docstrings for details.

• col_wrap (int | None (default: 3)) – Arguments for imshow, see its docstrings for details.

• **kwargs (Any) – Keyword args for imshow.

Return type:

PyrFigure

Returns:

fig – The figure containing the displayed filters.

Examples

>>> import plenoptic as po
>>> lgg_model = po.models.LuminanceContrastGainControl(
...     31, pretrained=True, cache_filt=True
... )
>>> lgg_model.display_filters()
<PyrFigure ...>

(png, hires.png, pdf)

forward(x)

Compute model response on input tensor.

We use same-padding to ensure that the output and input shapes are matched.

Parameters:

x (Tensor) – The input tensor, should be 4d (batch, channel, height, width).

Return type:

Tensor

Returns:

y – Model response to input.

Examples

>>> import plenoptic as po
>>> lgg_model = po.models.LuminanceContrastGainControl(
...     31, pretrained=True, cache_filt=True
... )

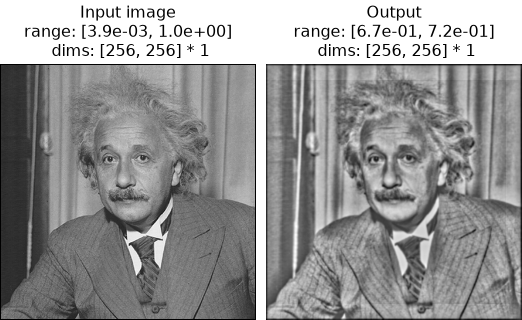

>>> img = po.data.einstein()
>>> y = lgg_model.forward(img)
>>> titles = ["Input image", "Output"]
>>> po.plot.imshow([img, y], title=titles)
<PyrFigure size...>

(png, hires.png, pdf)
