plenoptic.MetamerCTF#

class plenoptic.MetamerCTF(image, model, loss_function=<function mse>, penalty_function=<function penalize_range>, penalty_lambda=0.1, coarse_to_fine='together')[source]#

Synthesize model metamers with coarse-to-fine synthesis.

This is a special case of Metamer, which uses the coarse-to-fine synthesis procedure described in [1]: we start by updating metamer with respect to only a subset of the model’s representation (generally, that which corresponds to the lowest spatial frequencies), and changing which subset we consider over the course of synthesis. This is similar to optimizing with a blurred version of the objective function and gradually adding in finer details. It improves synthesis performance for some models.

Parameters:
  • image (Tensor) – A tensor, this is the image whose representation we wish to match.

  • model (Module) – A visual model.

  • loss_function (Callable[[Tensor, Tensor], Tensor] (default: <function mse at 0x7f41412b0cc0>)) – The loss function to use to compare the representations of the models in order to determine their loss.

  • penalty_function (Callable[[Tensor], Tensor] (default: <function penalize_range at 0x7f41412b2160>)) – A function applied to the metamer during optimization, that returns a scalar penalty to be minimized. By penalizing certain properties of the image, like pixels values outside an allowed range, we can constrain those image properties. See Regularization penalty in the documentation for details and examples.

  • penalty_lambda (float (default: 0.1)) – Strength of the penalty term. Must be non-negative.

  • coarse_to_fine (Literal['together', 'separate'] (default: 'together')) –

    • "together": start with the coarsest scale, then gradually add each finer scale.

    • "separate": compute the gradient with respect to each scale separately (ignoring the others), then with respect to all of them at the end.

    (see Metamer tutorial for more details).

References

Examples

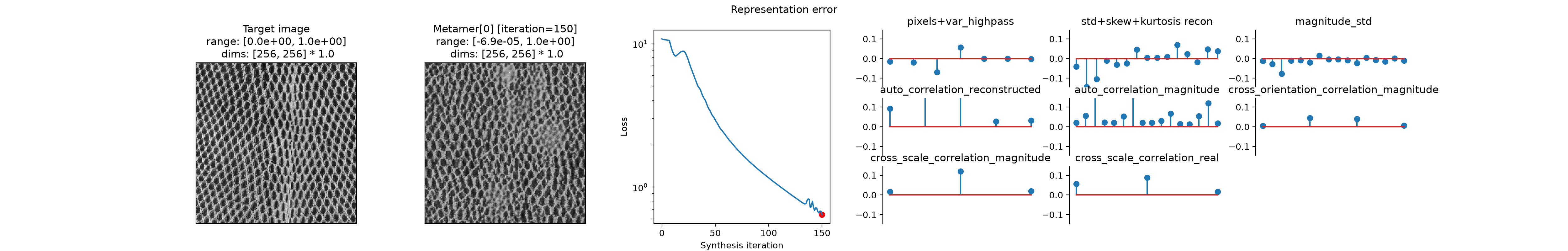

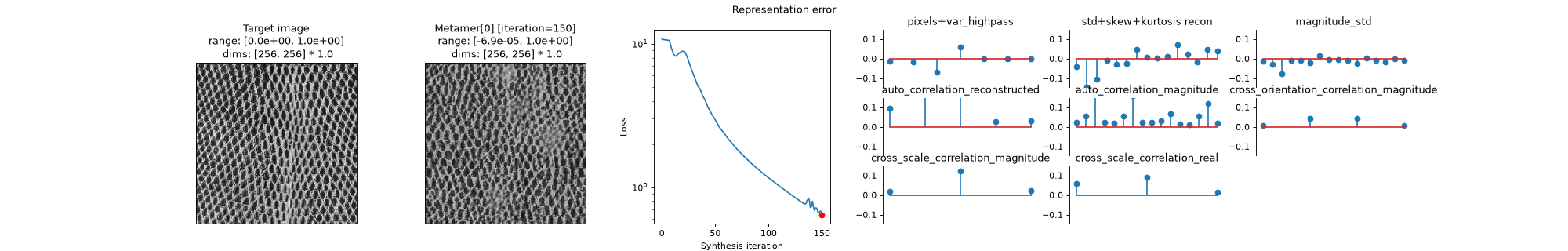

Synthesize and visualize a metamer using coarse-to-fine synthesis:

>>> import plenoptic as po
>>> import matplotlib.pyplot as plt
>>> import torch
>>> img = po.data.reptile_skin()
>>> model = po.models.PortillaSimoncelli(img.shape[-2:])
>>> # to work with MetamerCTF, models must have a scales attribute
>>> model.scales
['pixel_statistics', 'residual_lowpass', 3, 2, 1, 0, 'residual_highpass']
>>> met = po.MetamerCTF(img, model, loss_function=po.loss.l2_norm)
>>> # initialize with an image that has a comparable mean and standard deviation
>>> init_img = (torch.rand_like(img) - 0.5) * 0.1 + img.mean()
>>> met.setup(init_img)
>>> met.synthesize(150, change_scale_criterion=None, ctf_iters_to_check=7)
>>> fig, axes = plt.subplots(1, 4, figsize=(25, 4), width_ratios=[1, 1, 1, 3])
>>> po.plot.imshow(img, ax=axes[0], title="Target image")
<Figure size ... with 4 Axes>
>>> axes[0].xaxis.set_visible(False)
>>> axes[0].yaxis.set_visible(False)
>>> po.plot.synthesis_status(met, fig=fig, axes_idx={"misc": 0})
<Figure size ...>

(png, hires.png, pdf)

../../_images/plenoptic-MetamerCTF-1.png

Not all models work with MetamerCTF:

>>> import plenoptic as po
>>> img = po.data.einstein()
>>> model = po.models.Gaussian(30).eval()
>>> po.remove_grad(model)
>>> met = po.MetamerCTF(img, model)
Traceback (most recent call last):
AttributeError: model has no scales attribute ...

Methods

get_progress(iteration[, iteration_selection])

Return dictionary summarizing synthesis progress at iteration.

load(file_path[, map_location, ...])

Load all relevant stuff from a .pt file.

objective_function([metamer, ...])

Compute the metamer synthesis loss.

save(file_path)

Save all relevant variables in .pt file.

setup([initial_image, optimizer, ...])

Initialize the metamer, optimizer, and scheduler.

synthesize([max_iter, store_progress, ...])

Synthesize a metamer.

to(*args, **kwargs)

Move and/or cast the parameters and buffers.

Attributes

coarse_to_fine

How we scales are handled, see MetamerCTF for details.

gradient_norm

Optimization gradient's L2 norm over iterations.


Target image of metamer optimization.

loss_function

Callable which specifies how close metamer representation is to target.

losses

Optimization loss over iterations.

metamer

Model metamer, the parameter we are optimizing.

model

The model for which the metamer is synthesized.

optimizer

Torch optimizer object which updates the synthesis target.

penalties

Penalty function output over iterations.

penalty_function

Callable which penalizes additional properties of the synthesized image.

penalty_lambda

Magnitude of the regularization weight.

pixel_change_norm

L2 norm change in pixel values over iterations.

saved_metamer

metamer, cached over time for later examination.

scales

Model scales that we've yet to optimize, modified during optimization.

scales_finished

Model scales that we've finished optimizing, modified during optimization.

scales_loss

Scale-specific loss at each iteration.

scales_timing

Information about when each scale was started and stopped.

scheduler

Learning rate scheduler which adjusts optimizer learning rate.

store_progress

How often we are caching progress.

target_representation

model representation of image.

get_progress(iteration, iteration_selection='round')#

Return dictionary summarizing synthesis progress at iteration.

This returns a dictionary containing info from losses, pixel_change_norm, gradient_norm, penalties, and saved_metamer corresponding to iteration. If synthesis was run with store_progress=False (and so we did not cache anything in saved_metamer), then that key will be missing. If synthesis was run with store_progress>1, we will grab the corresponding tensor from saved_metamer, with behavior determined by iteration_selection.

The returned dictionary will additionally contain the keys:

Note that for the most recent iteration (iteration=-1 or iteration=None or iteration==len(self.losses)-1), we do not have values for pixel_change_norm or gradient_norm, since in this case we are showing the loss and value for the current metamer.

Parameters:
  • iteration (int | None) – Synthesis iteration to summarize. If None, grab the most recent. Negative values are allowed.

  • iteration_selection (Literal['floor', 'ceiling', 'round'] (default: 'round')) –

    How to select the relevant iteration from saved_metamer when the request iteration wasn’t stored.

    When synthesis was run with store_progress=n (where n>1), metamers are only saved every n iterations. If you request an iteration where a metamer wasn’t saved, this determines which available iteration is used instead:

    • "floor": use the closest saved iteration before the requested one.

    • "ceiling": use the closest saved iteration after the requested one.

    • "round": use the closest saved iteration.

Return type:

dict

Returns:

progress_info – Dictionary summarizing synthesis progress.

Raises:

IndexError – If iteration takes an illegal value.

Warns:

UserWarning – If the iteration used for saved_metamer is not the same as the argument iteration (because e.g., you set iteration=3 but self.store_progress=2).

See also

synthesis_status

Create a plot summarizing synthesis status at a given iteration.

synthesis_animate

Create a video of the metamer changing over the course of synthesis.

Examples

>>> import plenoptic as po
>>> po.set_seed(0)
>>> img = po.data.einstein()
>>> model = po.models.Gaussian(30).eval()
>>> po.remove_grad(model)
>>> met = po.Metamer(img, model)
>>> met.synthesize(5)

Get values from the first iteration:

>>> met.get_progress(0)
{'losses': tensor(0.0194),
'iteration': 0,
'penalties': tensor(0.),
'pixel_change_norm': tensor(2.5326),
'gradient_norm': tensor(0.0010)}

Get values from last iteration of synthesis:

>>> print(met.get_progress(-2))
{'losses': tensor(0.0145),
'iteration': 4,
'penalties': tensor(0.0180),
'pixel_change_norm': tensor(2.2698),
'gradient_norm': tensor(0.0268)}

Get current values:

>>> print(met.get_progress(-1))
{'losses': tensor(0.0132),
'iteration': 5,
'penalties': tensor(0.0174),
'pixel_change_norm': None,
'gradient_norm': None}

When synthesis is run with store_progress=True, this function also returns the metamer from the corresponding iteration:

>>> met = po.Metamer(img, model)
>>> met.synthesize(5, store_progress=True)
>>> print(met.get_progress(-1))
{'losses': tensor(0.0124),
'iteration': 5,
'penalties': tensor(0.0168),
'pixel_change_norm': None,
'gradient_norm': None,
'saved_metamer': tensor([[[[0.4554, ...]]]], grad_fn=<SelectBackward0>),
'store_progress_iteration': 5}
>>> torch.equal(met.saved_metamer[-1], met.get_progress(-1)["saved_metamer"])
True

When synthesis is run with store_progress>1, this function returns the metamer from the closest iteration:

>>> met = po.Metamer(img, model)
>>> met.synthesize(5, store_progress=2)
>>> print(met.get_progress(-3))
{'losses': tensor(0.0152),
'iteration': 3,
'penalties': tensor(0.0182),
'pixel_change_norm': tensor(2.3592),
'gradient_norm': tensor(0.0269),
'saved_metamer': tensor([[[[0.8532, ...]]]], grad_fn=<SelectBackward0>),
'store_progress_iteration': 4}

When we cannot grab the saved metamer corresponding to the requested iteration, iteration_selection controls how we determine “closest”:

>>> print(met.get_progress(-3, iteration_selection="floor"))
{'losses': tensor(0.0152),
'iteration': 3,
'penalties': tensor(0.0182),
'pixel_change_norm': tensor(2.3592),
'gradient_norm': tensor(0.0269),
'saved_metamer': tensor([[[[ 0.8730, ...]]]], grad_fn=<SelectBackward0>),
'store_progress_iteration': 2}
load(file_path, map_location=None, raise_on_checks=True, tensor_equality_atol=1e-08, tensor_equality_rtol=1e-05, **pickle_load_args)[source]#

Load all relevant stuff from a .pt file.

This should be called by an initialized MetamerCTF object – we will ensure that image, target_representation (and thus model), and loss_function are all identical.

Note this operates in place and so doesn’t return anything.

Changed in version 1.2: load behavior changed in a backwards-incompatible manner in order to compatible with breaking changes in torch 2.6.

Changed in version 2.0.0: Adds raise_on_checks argument.

Parameters:
  • file_path (str) – The path to load the synthesis object from.

  • map_location (str | None (default: None)) – Argument to pass to torch.load as map_location. If you save stuff that was being run on a GPU and are loading onto a CPU, you’ll need this to make sure everything lines up properly. This should be structured like the str you would pass to torch.device.

  • raise_on_checks (bool (default: True)) – During load, we perform several checks to ensure that the saved object was initialized in the same way as the loading object. This is to ensure that the model, image, etc. are all the same and avoid unpleasant surprises. If True, we raise a ValueError if any of these checks fail. If False, we instead raise a LoadWarning. The intended use here is if you’re loading something that was saved with an older version of plenoptic and you’re sure that you’re doing everything correctly. Note that different devices or dtypes will always result in a ValueError. See raise_on_checks on the “Reproducibility and Compatibility” page of the documentation for more info. Additionally, note that, if the MetamerCTF object itself has changed, we cannot ensure that methods are the same – proceed at your own risk.

  • tensor_equality_atol (float (default: 1e-08)) – Absolute tolerance to use when checking for tensor equality during load, passed to torch.allclose. It may be necessary to increase if you are saving and loading on two machines with torch built by different cuda versions. Be careful when changing this! See torch.finfo for more details about floating point precision of different data types (especially, eps); if you have to increase this by more than 1 or 2 decades, then you are probably not dealing with a numerical issue.

  • tensor_equality_rtol (float (default: 1e-05)) – Relative tolerance to use when checking for tensor equality during load, passed to torch.allclose. It may be necessary to increase if you are saving and loading on two machines with torch built by different cuda versions. Be careful when changing this! See torch.finfo for more details about floating point precision of different data types (especially, eps); if you have to increase this by more than 1 or 2 decades, then you are probably not dealing with a numerical issue.

  • **pickle_load_args (Any) – Any additional kwargs will be added to pickle_module.load via torch.load, see that function’s docstring for details.

Raises:
Warns:

UserWarning – If setup will need to be called after load, to finish initializing optimizer or scheduler.

Examples

In order to load a saved MetamerCTF object, we must first initialize one using the same arguments. (We use float64 / “double” precision rather than torch’s default float32 because it increases reproducibility, see the Reproducibility page of our documentations for more details.) Here, we load in a cached example:

>>> import plenoptic as po
>>> img = po.data.reptile_skin().to(torch.float64)
>>> model = po.models.PortillaSimoncelli(img.shape[-2:])
>>> met = po.MetamerCTF(img, model, po.loss.l2_norm)
>>> print(met.metamer)
tensor([])
>>> met.load(po.data.fetch_data("example_metamerCTF_ps.pt"))
>>> print(met.metamer)
tensor([[[[0.1421, ...]]]], dtype=torch.float64, requires_grad=True)

If the saved MetamerCTF object lived on a CUDA device and you do not have CUDA on the loading machine, use map_location to change device:

>>> met = po.MetamerCTF(img, model, po.loss.l2_norm)
>>> met.image.device
device(type='cpu')
>>> met.load(po.data.fetch_data("example_metamerCTF_ps-cuda.pt"))
Traceback (most recent call last):
RuntimeError: Attempting to deserialize object on a CUDA device but
torch.cuda.is_available() is False...
>>> met.load(
...     po.data.fetch_data("example_metamerCTF_ps-cuda.pt"), map_location="cpu"
... )
>>> print(met.metamer)
tensor([[[[0.1421, ...]]]], dtype=torch.float64, requires_grad=True)

Loading and saving must both be done with MetamerCTF:

>>> met = po.Metamer(img, model)
>>> met.load(po.data.fetch_data("example_metamerCTF_ps.pt"))
Traceback (most recent call last):
ValueError: Saved object was a plenoptic.MetamerCTF...

If the loading MetamerCTF object was not initialized with same values as the saved object, an error will be raised:

>>> met = po.MetamerCTF(torch.rand_like(img), model, po.loss.l2_norm)
>>> met.load(po.data.fetch_data("example_metamerCTF_ps.pt"))
Traceback (most recent call last):
ValueError: Saved and initialized attribute image have different values...

If the loading MetamerCTF object has a different data type than the saved object, an error will be raised:

>>> met = po.MetamerCTF(img, model, po.loss.l2_norm)
>>> met.to(torch.float32)
>>> met.load(po.data.fetch_data("example_metamerCTF_ps.pt"))
Traceback (most recent call last):
ValueError: Saved and initialized attribute image have different dtype...
objective_function(metamer=None, target_representation=None, **analyze_kwargs)#

Compute the metamer synthesis loss.

This calls loss_function on self.model(metamer, **analyze_kwargs) and target_representation and then adds penalty_lambda times penalty_function on metamer.

Its output over time is stored in losses.

Parameters:
  • metamer (Tensor | None (default: None)) – Current metamer. If None, we use self.metamer.

  • target_representation (Tensor | None (default: None)) – Model response to image. If None, we use self.target_representation.

  • **analyze_kwargs (Any) – Additional kwargs to pass to self.model(metamer).

Return type:

Tensor

Returns:

loss – 1-element tensor containing the loss on this step.

Examples

>>> import plenoptic as po
>>> po.set_seed(0)
>>> img = po.data.einstein()
>>> model = po.models.Gaussian(30).eval()
>>> po.remove_grad(model)
>>> met = po.Metamer(img, model)

Before setup or synthesize is called, this returns an empty tensor because the metamer attribute hasn’t been initialized:

>>> met.objective_function()
tensor([])
>>> met.synthesize(5, store_progress=True)

When called without any arguments, this returns the current loss:

>>> met.objective_function()
tensor(0.0132, grad_fn=<AddBackward0>)
>>> met.losses[-1]
tensor(0.0132)

Can be called with a different image. (Note that, because we called synthesize with store_progress=True, we cached the metamer over the course of synthesis):

>>> met.objective_function(met.saved_metamer[0])
tensor(0.0194, grad_fn=<AddBackward0>)
>>> met.losses[0]
tensor(0.0194)

This method differs from the loss_function attribute because of its inclusion of the penalty. In the following block, the pixels of rand_img all lie within [0, 1], and so the outputs of objective_function and loss_function are the same:

>>> rand_img = torch.rand_like(img)
>>> rand_img.min(), rand_img.max()
(tensor(7.9870e-06), tensor(1.0000))
>>> met.objective_function(rand_img)
tensor(0.0190)
>>> met.loss_function(model(img), model(rand_img))
tensor(0.0190)

In this block, the image’s lie outside [0, 1], and so the outputs of objective_function and loss_function are different:

>>> rand_img *= 2
>>> rand_img.min(), rand_img.max()
(tensor(0.0001), tensor(2.0000))
>>> met.objective_function(rand_img)
tensor(1100.9663)
>>> loss = met.loss_function(model(img), model(rand_img))
>>> loss
tensor(0.3133)

To compute the output of the objective function, we take the output of loss_function and add the output of penalty_function times penalty_lambda:

>>> penalty = met.penalty_function(rand_img)
>>> penalty
tensor(11006.5293)
>>> loss + met.penalty_lambda * penalty
tensor(1100.9663)
save(file_path)#

Save all relevant variables in .pt file.

Note that if store_progress is True, this will probably be very large.

Parameters:

file_path (str) – The path to save the metamer object to.

See also

load

Method to load in saved Metamer objects.

Examples

>>> import plenoptic as po
>>> img = po.data.einstein()
>>> model = po.models.Gaussian(30).eval()
>>> po.remove_grad(model)
>>> met = po.Metamer(img, model)
>>> met.synthesize(max_iter=5, store_progress=True)
>>> met.save("metamers.pt")
setup(initial_image=None, optimizer=None, optimizer_kwargs=None, scheduler=None, scheduler_kwargs=None)#

Initialize the metamer, optimizer, and scheduler.

Can only be called once. If load() has been called, initial_image must be None.

Parameters:
  • initial_image (Tensor | None (default: None)) – The tensor we use to initialize the metamer. If None, we initialize with random noise uniformly-distributed in [0,1].

  • optimizer (Optimizer | None (default: None)) – The un-initialized optimizer object to use. If None, we use torch.optim.Adam.

  • optimizer_kwargs (dict | None (default: None)) – The keyword arguments to pass to the optimizer on initialization. If None, we use {"lr": .01} and, if optimizer is None, {"amsgrad": True}.

  • scheduler (LRScheduler | None (default: None)) – The un-initialized learning rate scheduler object to use. If None, we don’t use one.

  • scheduler_kwargs (dict | None (default: None)) – The keyword arguments to pass to the scheduler on initialization.

Raises:
  • ValueError – If you try to set initial_image after calling load.

  • ValueError – If setup is called more than once or after synthesize.

  • ValueError – If you try to set optimizer_kwargs after calling load.

  • TypeError – If the loaded object had a non-Adam optimizer, but the optimizer arg is not specified.

  • ValueError – If the loaded object had an optimizer, and the optimizer arg is a different type.

  • ValueError – If you try to set scheduler_kwargs after calling load.

  • TypeError – If the loaded object had a scheduler, but the scheduler arg is not specified.

  • ValueError – If the loaded object had a scheduler, but the scheduler arg is a different type.

Warns:

UserWarning – If initial_image is a different shape than self.image.

Examples

Set initial image:

>>> import plenoptic as po
>>> img = po.data.einstein()
>>> model = po.models.Gaussian(30).eval()
>>> po.remove_grad(model)
>>> met = po.Metamer(img, model)
>>> met.setup(po.data.curie())

Set optimizer:

>>> met = po.Metamer(img, model)
>>> met.setup(optimizer=torch.optim.SGD, optimizer_kwargs={"lr": 0.01})

Set optimizer and scheduler:

>>> met = po.Metamer(img, model)
>>> met.setup(
...     optimizer=torch.optim.SGD,
...     optimizer_kwargs={"lr": 0.01},
...     scheduler=torch.optim.lr_scheduler.ReduceLROnPlateau,
... )

Use with save/load. We only pass the optimizer/scheduler objects when calling setup after load, their kwargs and the initial image are handled during the load.

>>> met = po.Metamer(img, model)
>>> met.setup(
...     po.data.curie(),
...     optimizer=torch.optim.SGD,
...     optimizer_kwargs={"lr": 0.01},
...     scheduler=torch.optim.lr_scheduler.ReduceLROnPlateau,
... )
>>> met.synthesize(5)
>>> met.save("metamer_setup.pt")
>>> met = po.Metamer(img, model)
>>> met.load("metamer_setup.pt")
>>> met.setup(
...     optimizer=torch.optim.SGD,
...     scheduler=torch.optim.lr_scheduler.ReduceLROnPlateau,
... )
synthesize(max_iter=100, store_progress=False, stop_criterion=0.0001, stop_iters_to_check=50, change_scale_criterion=0.01, ctf_iters_to_check=50)[source]#

Synthesize a metamer.

Update the pixels of metamer until its representation matches that of image.

We run this until either we reach max_iter or the change over the past stop_iters_to_check iterations is less than stop_criterion, whichever comes first.

Parameters:
  • max_iter (int (default: 100)) – The maximum number of iterations to run before we end synthesis (unless we hit the stop criterion).

  • store_progress (bool | int (default: False)) – Whether we should store the metamer image in progress on every iteration. If False, we don’t save anything. If True, we save every iteration. If an int, we save every store_progress iterations (note then that 0 is the same as False and 1 the same as True). This is primarily useful for using synthesis_animate to create a video of the course of synthesis.

  • stop_criterion (float (default: 0.0001)) – If the loss over the past stop_iters_to_check has changed less than stop_criterion, we terminate synthesis.

  • stop_iters_to_check (int (default: 50)) – How many iterations back to check in order to see if the loss has stopped decreasing (for stop_criterion).

  • change_scale_criterion (float | None (default: 0.01)) – Scale-specific analogue of change_scale_criterion: we consider a given scale finished (and move onto the next) if the loss has changed less than this in the past ctf_iters_to_check iterations. If None, we’ll change scales as soon as we’ve spent ctf_iters_to_check on a given scale.

  • ctf_iters_to_check (int (default: 50)) – Scale-specific analogue of stop_iters_to_check: how many iterations back in order to check in order to see if we should switch scales.

Raises:
  • ValueError – If stop_criterion >= change_scale_criterion – behavior is strange otherwise.

  • ValueError – If we find a NaN during optimization.

See also

synthesis_status

Create a plot summarizing synthesis status at a given iteration.

synthesis_animate

Create a video of the metamer changing over the course of synthesis.

Examples

>>> import plenoptic as po
>>> po.set_seed(0)
>>> img = po.data.reptile_skin()
>>> model = po.models.PortillaSimoncelli(img.shape[-2:])
>>> met = po.MetamerCTF(img, model)
>>> # this isn't enough to run synthesis to completion, just an example
>>> met.synthesize(5)
>>> met.losses
tensor([0.1062, ..., 0.1038])

You can examine scales_timing attribute to see when MetamerCTF started and stopped optimizing each scale:

>>> met.scales_timing
{'pixel_statistics': [0],
 'residual_lowpass': [],
 3: [],
 2: [],
 1: [],
 0: [],
 'all': []}

Synthesize a metamer, using store_progress so we can examine progress later. (This also enables us to create a video of the metamer changing over the course of synthesis, see synthesis_animate.)

>>> met = po.MetamerCTF(img, model)
>>> # this isn't enough to run synthesis to completion, just an example
>>> met.synthesize(5, store_progress=2)
>>> met.saved_metamer.shape
torch.Size([4, 1, 1, 256, 256])
>>> # see loss, etc on the 4th iteration
>>> progress = met.get_progress(4)
>>> progress.keys()
dict_keys(['losses', ..., 'saved_metamer', 'store_progress_iteration'])
>>> progress["losses"]
tensor(0.1109)

Set change_scale_criterion and ctf_iters_to_check to change scale-switching behavior.

>>> met = po.MetamerCTF(img, model)
>>> # this isn't enough to run synthesis to completion, just an example
>>> met.synthesize(5, change_scale_criterion=None, ctf_iters_to_check=2)
>>> met.losses
tensor([0.1119, ..., 0.0687])
>>> met.scales_timing
{'pixel_statistics': [0, 1],
 'residual_lowpass': [2, 3],
 3: [4],
 2: [],
 1: [],
 0: [],
 'all': []}

Adjust stop_criterion and stop_iters_to_check to change how convergence is determined. In this case, we stop early by making stop_criterion fairly large. In practice, you’re more likely to make stop_criterion smaller to let synthesis run for longer.

>>> met = po.MetamerCTF(img, model)
>>> # this isn't enough to run synthesis to completion, just an example
>>> met.synthesize(10, stop_criterion=0.001, stop_iters_to_check=2)
to(*args, **kwargs)[source]#

Move and/or cast the parameters and buffers.

This can be called as

to(device=None, dtype=None, non_blocking=False)
to(dtype, non_blocking=False)
to(tensor, non_blocking=False)

Its signature is similar to torch.Tensor.to, but only accepts floating point desired dtype. In addition, this method will only cast the floating point parameters and buffers to dtype (if given). The integral parameters and buffers will be moved device, if that is given, but with dtypes unchanged. When on_blocking` is set, it tries to convert/move asynchronously with respect to the host if possible, e.g., moving CPU Tensors with pinned memory to CUDA devices.

See torch.nn.Module.to for examples.

Note

This method modifies the module in-place.

Parameters:
  • device (torch.device) – The desired device of the parameters and buffers in this module.

  • dtype (torch.dtype) – The desired floating point type of the floating point parameters and buffers in this module.

  • tensor (torch.Tensor) – Tensor whose dtype and device are the desired dtype and device for all parameters and buffers in this module.

Examples

>>> import plenoptic as po
>>> img = po.data.reptile_skin()
>>> model = po.models.PortillaSimoncelli(img.shape[-2:])
>>> met = po.MetamerCTF(img, model)
>>> met.image.dtype
torch.float32
>>> met.model(met.image).dtype
torch.float32
>>> met.to(torch.float64)
>>> met.image.dtype
torch.float64
>>> met.model(met.image).dtype
torch.float64
property coarse_to_fine: str#

How we scales are handled, see MetamerCTF for details.

property gradient_norm: Tensor#

Optimization gradient’s L2 norm over iterations.

property image: Tensor#

Target image of metamer optimization.

property loss_function: Callable[[Tensor, Tensor], Tensor]#

Callable which specifies how close metamer representation is to target.

property losses: Tensor#

Optimization loss over iterations.

Will have length=num_iter+1, where num_iter is the number of iterations of synthesis run so far.

This tensor always lives on the CPU.

property metamer: Tensor#

Model metamer, the parameter we are optimizing.

property model: Module#

The model for which the metamer is synthesized.

property optimizer: Optimizer#

Torch optimizer object which updates the synthesis target.

property penalties: Tensor#

Penalty function output over iterations.

Will have length=num_iter+1, where num_iter is the number of iterations of synthesis run so far.

This tensor always lives on the CPU.

property penalty_function: Callable[[Tensor], Tensor]#

Callable which penalizes additional properties of the synthesized image.

property penalty_lambda: float#

Magnitude of the regularization weight.

property pixel_change_norm: Tensor#

L2 norm change in pixel values over iterations.

property saved_metamer: Tensor#

metamer, cached over time for later examination.

How often the metamer is cached is determined by the store_progress argument to the synthesize function.

The last entry will always be the current metamer.

If store_progress==1, then this corresponds directly to losses: losses[i] is the error for saved_metamer[i]

This tensor always lives on the CPU, regardless of the device of the Metamer object.

Examples

If synthesize is called without store_progress, then this attribute just contains the metamer, though the number of dimensions is different:

>>> import plenoptic as po
>>> po.set_seed(0)
>>> img = po.data.einstein()
>>> model = po.models.Gaussian(30).eval()
>>> po.remove_grad(model)
>>> met = po.Metamer(img, model)
>>> met.saved_metamer
tensor([])
>>> met.synthesize(5)
>>> met.saved_metamer
tensor([[[[[ 0.0098, ...]]]]], grad_fn=<StackBackward0>)
>>> met.metamer
tensor([[[[ 0.0098, ...]]]], requires_grad=True)
>>> met.saved_metamer.shape
torch.Size([1, 1, 1, 256, 256])
>>> met.metamer.shape
torch.Size([1, 1, 256, 256])

If synthesize is called with store_progress=1, then this attribute contains the metamer at each iteration, and losses[i] contains the error for saved_metamer[i].

>>> met = po.Metamer(img, model)
>>> met.synthesize(5, store_progress=True)
>>> met.saved_metamer.shape
torch.Size([6, 1, 1, 256, 256])
>>> met.objective_function(met.saved_metamer[2])
tensor(0.0169, grad_fn=<AddBackward0>)
>>> met.losses[2]
tensor(0.0169)

(In the above example, saved_metamer has 6 elements because it includes the metamer at the start of each of the 5 synthesis iterations, plus the current one.)

property scales: tuple#

Model scales that we’ve yet to optimize, modified during optimization.

property scales_finished: tuple#

Model scales that we’ve finished optimizing, modified during optimization.

property scales_loss: tuple#

Scale-specific loss at each iteration.

property scales_timing: dict#

Information about when each scale was started and stopped.

Keys are the values found in scales, and values are lists specifying the iteration where we started and stopped optimizing this scale, which are modified during optimization.

property scheduler: LRScheduler | None#

Learning rate scheduler which adjusts optimizer learning rate.

property store_progress: bool | int#

How often we are caching progress.

If False, we don’t save anything. If True, we save every iteration. If an int, we save every store_progress iterations (note then that 0 is the same as False and 1 the same as True).

property target_representation: Tensor#

model representation of image.

The goal of synthesis is for model(metamer) to match this value.

Examples

>>> import plenoptic as po
>>> img = po.data.einstein()
>>> model = po.models.Gaussian(30).eval()
>>> po.remove_grad(model)
>>> met = po.Metamer(img, model)
>>> torch.equal(model(img), met.target_representation)
True
