plenoptic.process.blur_downsample

plenoptic.process.blur_downsample(image, n_scales=1, filtname='binom5', scale_filter=True)

Correlate with a named filter and downsample by 2.

This operation allows one to downsample in an alias-resistant manner, removing the high frequencies that would result in aliasing in a smaller image.

Parameters:

• image (Tensor) – Image, or batch of images, of shape (batch, channel, height, width). Batches and channels are handled independently.

• n_scales (int (default: 1)) – Apply the blur and downsample procedure recursively n_scales times. Must be positive.

• filtname (str (default: 'binom5')) – Name of the filter. See named_filter for options.

• scale_filter (bool (default: True)) – If True, the filter sums to 1 (i.e., it does not affect the DC component of the signal and the output’s mean will approximately match that of the input). If False, the filter sums to 2 (and the output’s mean will be roughly double that of the input).

Return type:

Tensor

Returns:

downsampled_image – The downsampled image.

Raises:

ValueError – If n_scales is not positive.

See also

correlate_downsample

Perform this operation once using a user-specified filter.

upsample_blur

Perform the inverse operation, upsampling and convolving a user-specified number of times using a named filter.

shrink

An alternative downsampling operation.

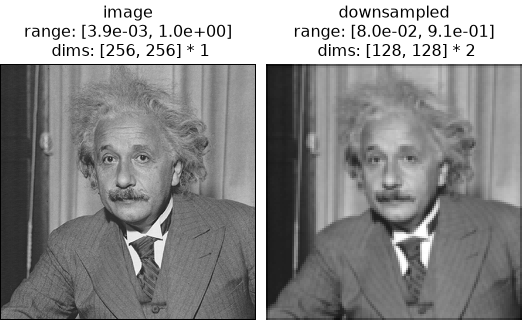

Examples

>>> import plenoptic as po
>>> import torch
>>> img = po.data.einstein()
>>> downsampled = po.process.blur_downsample(img)
>>> downsampled.shape
torch.Size([1, 1, 128, 128])
>>> po.plot.imshow([img, downsampled], title=["image", "downsampled"])
<PyrFigure...>

(png, hires.png, pdf)

Note that the dimensions have changed.

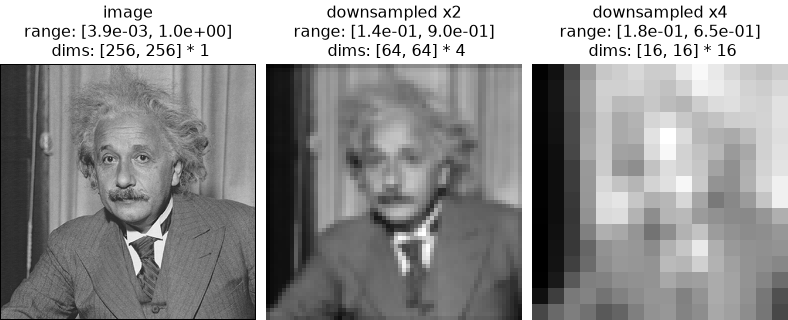

The n_scales argument allows for applying the blurring and downsampling recursively:

>>> downsampled_2 = po.process.blur_downsample(img, n_scales=2)
>>> downsampled_2.shape
torch.Size([1, 1, 64, 64])
>>> downsampled_4 = po.process.blur_downsample(img, n_scales=4)
>>> downsampled_4.shape
torch.Size([1, 1, 16, 16])
>>> po.plot.imshow(
...     [img, downsampled_2, downsampled_4],
...     title=["image", "downsampled x2", "downsampled x4"],
... )
<PyrFigure...>

(png, hires.png, pdf)

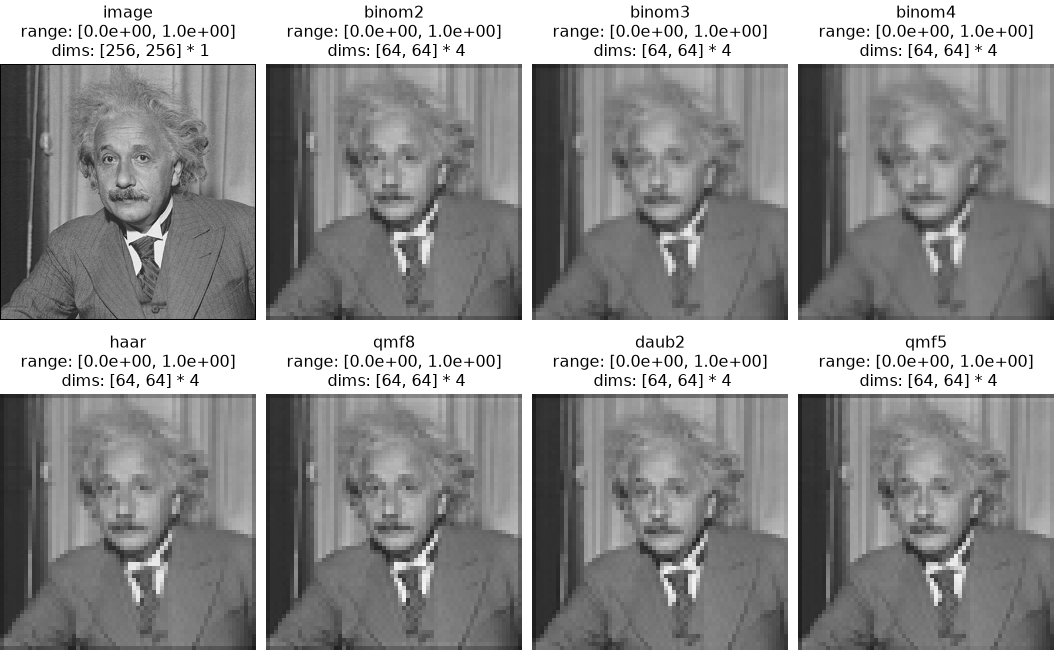

In Plenoptic, we typically use a fifth order binomial filter, but many other filters are available, see pyrtools.pyramids.filters.named_filter for a list.

>>> named_filters = [
...     "binom2",
...     "binom3",
...     "binom4",
...     "haar",
...     "qmf8",
...     "daub2",
...     "qmf5",
... ]
>>> downsampled_filter = [
...     po.process.blur_downsample(img, n_scales=2, filtname=filt)
...     for filt in named_filters
... ]
>>> po.plot.imshow(
...     [img] + downsampled_filter,
...     title=["image"] + named_filters,
...     col_wrap=4,
...     vrange=(0, 1),
... )
<PyrFigure...>

(png, hires.png, pdf)

Note that this operation can change the minimum and maximum, and different filters can do so differently:

>>> img.min()
tensor(0.0039)
>>> img.max()
tensor(1.)
>>> for filter_name, downsampled in zip(named_filters, downsampled_filter):
...     print(
...         f"filter: {filter_name}, "
...         f"min={downsampled.min():.2f}, "
...         f"max={downsampled.max():.2f}"
...     )
filter: binom2, min=0.11, max=0.92
filter: binom3, min=0.11, max=0.91
filter: binom4, min=0.15, max=0.90
filter: haar, min=0.11, max=0.92
filter: qmf8, min=0.12, max=0.97
filter: daub2, min=0.09, max=0.95
filter: qmf5, min=0.09, max=0.94

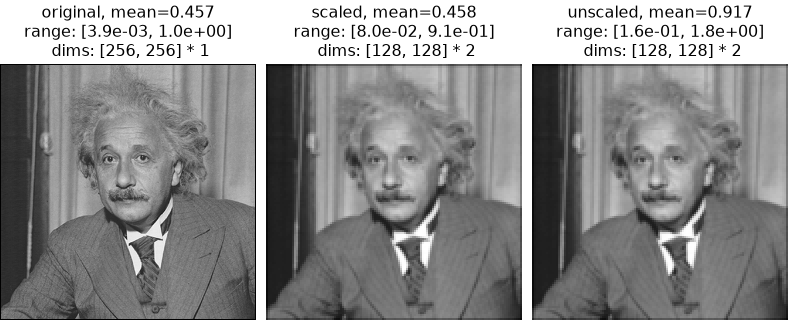

The scale_filter argument forces the filter to sum to 1, making the mean of the output approximately match that of the input. If set to False, the filter will sum to 2, and the output’s mean will be approximately double that of the input:

>>> downsampled_nonscaled = po.process.blur_downsample(img, scale_filter=False)
>>> torch.allclose(img.mean(), downsampled.mean(), atol=1e-2)
True
>>> torch.allclose(img.mean(), downsampled_nonscaled.mean() / 2, atol=1e-2)
True
>>> po.plot.imshow(
...     [img, downsampled, downsampled_nonscaled],
...     title=[
...         f"original, mean={img.mean().item():.3f}",
...         f"scaled, mean={downsampled.mean().item():.3f}",
...         f"unscaled, mean={downsampled_nonscaled.mean().item():.3f}",
...     ],
... )
<PyrFigure...>

(png, hires.png, pdf)
