plenoptic.process.same_padding

plenoptic.process.same_padding(image, kernel_size, stride=(1, 1), dilation=(1, 1), pad_mode='circular')

Pad a tensor so that 2D convolution will result in output with same dims.

Parameters:

• image (Tensor) – Image, or batch of images, with at least 2 dimensions (height and width). Any additional dimensions are handled independently.

• kernel_size (tuple[int, int]) – Size of the kernel that image will be convolved with.

• stride (int | tuple[int, int] (default: (1, 1))) – Stride argument that will be passed to the convolution function.

• dilation (int | tuple[int, int] (default: (1, 1))) – Dilation argument that will be passed to the convolution function.

• pad_mode (str (default: 'circular')) – How to pad image. See torch.nn.functional.pad for possible values.

Return type:

Tensor

Returns:

padded_image – The padded tensor.

Raises:

ValueError – If image is not 4d.

Examples

>>> import plenoptic as po
>>> import torch
>>> img = po.data.einstein()
>>> img.shape
torch.Size([1, 1, 256, 256])
>>> padded = po.process.same_padding(img, kernel_size=(10, 10))
>>> padded.shape
torch.Size([1, 1, 265, 265])

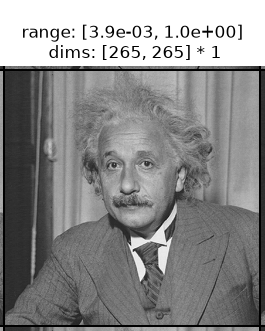

>>> po.plot.imshow(padded)
<PyrFigure...>

(png, hires.png, pdf)

The output grows by kernel_size - 1 in each dimension, so that a subsequent convolution with that kernel returns an output matching the original spatial dimensions.

The following convolution functions all use this padding function to return outputs with the same shape as the input:

• correlate_downsample

• blur_downsample

Here, let’s apply a convolution manually and verify the shapes:

>>> kernel = torch.ones(1, 1, 10, 10) / 100
>>> padded = po.process.same_padding(img, kernel_size=(10, 10))
>>> convolved = torch.nn.functional.conv2d(padded, kernel)
>>> convolved.shape
torch.Size([1, 1, 256, 256])

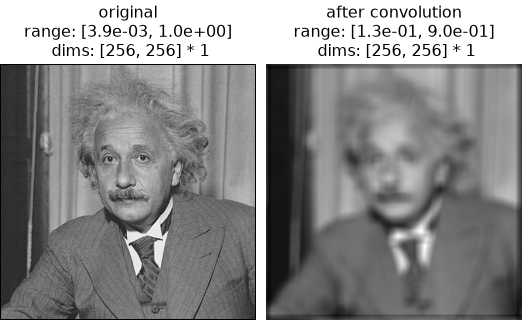

>>> po.plot.imshow(
...     [img, convolved],
...     title=["original", "after convolution"],
... )
<PyrFigure...>

(png, hires.png, pdf)

Non-square kernels are supported; padding is computed independently for height and width:

>>> padded_rect = po.process.same_padding(img, kernel_size=(10, 20))
>>> padded_rect.shape
torch.Size([1, 1, 265, 275])

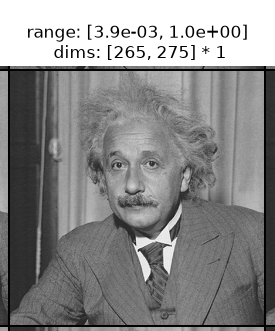

>>> po.plot.imshow(padded_rect)
<PyrFigure...>

(png, hires.png, pdf)

The pad_mode argument controls how boundary values are filled. The border of each image shows the filled padding region:

>>> pad = 50
>>> pad_modes = ["circular", "reflect", "replicate", "constant"]
>>> padded_imgs = [
...     po.process.same_padding(img, kernel_size=(50, 50), pad_mode=m)
...     for m in pad_modes
... ]
>>> corners = [p[:, :, : pad * 3, : pad * 3] for p in padded_imgs]

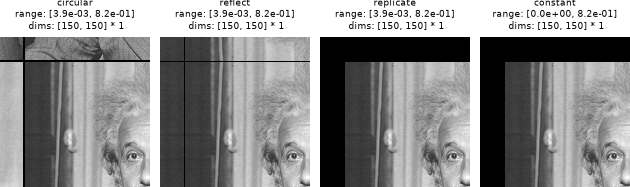

>>> po.plot.imshow(corners, title=pad_modes)
<PyrFigure...>

(png, hires.png, pdf)

The stride and dilation arguments should match those passed to the subsequent convolution. A strided convolution produces a smaller output but still avoids losing edge information. A dilated convolution expands the effective receptive field of the kernel without increasing its parameter count. See torch.nn.functional.conv2d for more information.

>>> kernel = torch.ones(1, 1, 10, 10) / 100
>>> padded_stride = po.process.same_padding(
...     img, kernel_size=(10, 10), stride=(3, 3)
... )
>>> convolved_stride = torch.nn.functional.conv2d(
...     padded_stride, kernel, stride=(3, 3)
... )
>>> padded_dilate = po.process.same_padding(
...     img, kernel_size=(10, 10), dilation=(3, 3)
... )
>>> convolved_dilate = torch.nn.functional.conv2d(
...     padded_dilate, kernel, dilation=(3, 3)
... )

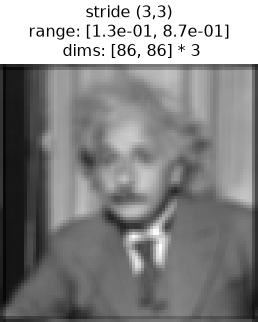

>>> po.plot.imshow(convolved_stride, title="stride (3,3)", zoom=3)
<PyrFigure...>
>>> po.plot.imshow(convolved_dilate, title="dilation (3,3)")
<PyrFigure...>

Note the different dimensions.

Fig. 15 (png, hires.png, pdf)

Fig. 16 (png, hires.png, pdf)
